A low-cost chip can become a very expensive missing part. A vehicle controller, a battery rack, or an industrial drive may contain hundreds of components, yet one unavailable microcontroller can prevent the complete system from shipping. The component's purchase price tells us little about how difficult it is to replace.

That is the $2 chip paradox. The dollar figure is an illustration, not a price claim about every automotive MCU. The real story is the engineering investment surrounding a device: firmware, diagnostics, calibration, board layout, manufacturing tests, and evidence that the system behaves safely.

A note on the title: “MATURE NODEMCUs” refers here to microcontrollers made on mature semiconductor process nodes. It is not a guide to the NodeMCU firmware project or ESP8266/ESP32 development boards.

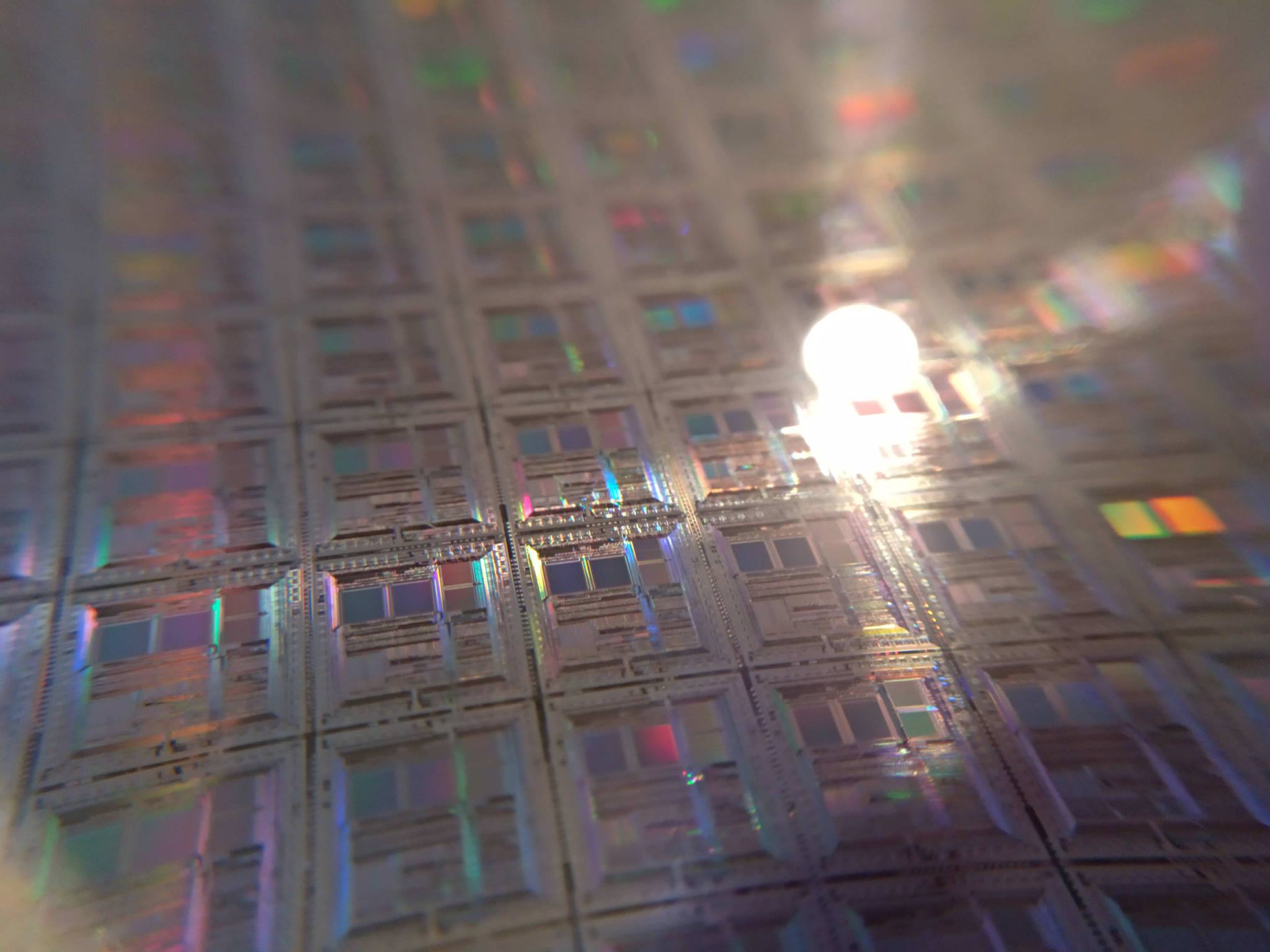

Repeating rectangular semiconductor dies on a real patterned silicon wafer
Real silicon, repeated die patterns. This photograph illustrates wafer manufacturing; its process node and product type are unspecified. Photo: Le hollandais volant / Wikimedia Commons, CC BY 4.0.

01 / Cheap to buy. Hard to replace.

Consider a motor controller. Its MCU samples sensors, calculates control outputs, drives timing peripherals, and watches for faults. Replacing it may change interrupt timing, analog-to-digital conversion behavior, memory layout, peripheral drivers, or the diagnostic coverage assumed by the safety design. Even a pin-compatible device can behave differently in ways that matter.

There are several distinct approval layers. Component reliability qualification, customer production approval, and system functional safety are related, but they are not interchangeable. An automotive-qualified part does not, by itself, make an application safe.

ISO 26262 addresses safety-related automotive electrical and electronic systems. Changes call for analysis of their impact and a suitable safety lifecycle; the standard does not impose a universal 18–24 month requalification period for every substitution or fab transfer. The effort depends on the change, the available evidence, and the customer's requirements. [1]

The practical consequence remains serious: an alternative that looks similar in a distributor's catalog may need substantial validation before it can enter production. Replacement cost includes engineering work and possible lost output, not just the price difference between two chips. Fixed multimillion-dollar estimates would need a specific program and supporting evidence.

02 / Mature does not mean obsolete.

Process selection is an engineering tradeoff. Many control and analog devices need combinations of voltage handling, nonvolatile memory, precision, temperature performance, and long product support. The smallest available transistor is not automatically the best fit for those requirements.

“Mature node” is a broad industry term rather than a single specification. The original article focuses on roughly 28–180 nm devices. As one concrete example, Infineon describes its AURIX TC4x automotive MCU family as using 28 nm technology. That does not mean every safety MCU—or every analog IC—uses the same process. [2]

Digital logic often benefits from scaling. Analog circuits face additional constraints: matching, noise, voltage headroom, leakage, and the behavior of passive components. Smaller geometries can offer advantages, but precision and robustness depend on the entire process and circuit design. It would be too broad to say analog performance never benefits from smaller transistors.

Temperature ratings also belong to the individual device. Ambient, case, and junction temperatures are different quantities. Always check the specified operating range and thermal limits in the exact datasheet; a blanket −40°C to +150°C claim is not a substitute.

01 — PULSE-WIDTH MODULATION50% DUTY CYCLE
Ideal PWM signal: equal high and low intervals, 50 percent duty cycle. Illustrative timing, not a measurement.
Idealized logic waveform · motion traces the signal; it does not represent electron speed.

Pulse-width modulation is one example of what control silicon does: changing the proportion of time a logic signal stays high can command a power stage. The diagram above shows equal high and low intervals. A real gate driver and switching device add propagation delay, rise and fall times, losses, and application-specific constraints.

03 / The bottleneck is more specific than wafer size.

A wafer's diameter and a transistor's process node describe different things. Mature products can be manufactured on 200 mm or 300 mm wafers. A larger wafer provides more area, but a factory still needs the right equipment, process, masks, yield, and qualified production flow for a given part.

The claim that global 200 mm capacity has been essentially flat since 2010 does not fit the published expansion outlook. SEMI's 2023 report projected 14% capacity growth from 2023 to 2026. Its later 2026 outlook describes continued growth. These are dated industry forecasts, not proof that any particular device is available today. [3] [4]

There is also significant 300 mm investment in foundational semiconductors. Texas Instruments announced production at its Sherman SM1 300 mm fab in December 2025. Sherman therefore should not be cited as an example of new 200 mm capacity. [5]

The 2021 Renesas Naka fire offers another useful correction: the affected N3 building included a 300 mm line. Disruption risk is not confined to older wafer diameters. A fire, utility interruption, packaging constraint, or test bottleneck can affect an otherwise modern production chain. [6]

Wafer diameterWhere it appearsWhat to investigate
300 mmLogic, memory, and many analog or embedded productsQualified process capacity and actual production allocation
200 mmSpecialty, analog, power, MEMS, and some MCU productionProduct-specific capacity, tooling, and transfer options
150 mm and other sizesSome specialty and legacy productionTechnology transitions and the supplier's lifecycle plan

04 / Six functions that keep systems running.

Electrification is not powered by MCUs alone. The surrounding analog and interface devices connect computation to the physical world. A useful supply review starts by asking what each component does and what must be rechecked when it changes.

FunctionJob in the systemReplacement checks
Control / safety MCURuns control firmware, diagnostics, and timingSoftware, peripherals, timing, fault response, safety evidence
Battery cell monitorMeasures cell voltages; may support balancing and protectionAccuracy, communications, open-wire checks, balancing, fault handling
Gate driverTranslates control signals into gate charge and discharge currentDrive strength, delays, protection, isolation rating where required
Current sensingConverts a shunt voltage or magnetic field into a measurementRange, bandwidth, offset, drift, common-mode behavior, isolation
CAN / CAN-FD transceiverConnects logic signals to the differential busTiming, EMC, bus faults, standby modes, pinout
Position sensing / conversionProvides rotor position feedbackSensor principle, latency, accuracy, interfaces, motor calibration

Two examples show why exact part numbers matter. TI's BQ79616-Q1 is a battery monitor and balancer with support for up to 16 series cells; a separate host MCU is still required. TI's INA240 is a current-sense amplifier with enhanced PWM rejection—it is not a galvanically isolated amplifier. High common-mode voltage capability is not the same thing as an isolation barrier. [7] [8]

Conceptual BMS measurement path. Power supplies, protection, isolation, balancing connections, and communications details are omitted. This is not a wiring schematic.

05 / Read the supply chain at part level.

The original article names Infineon, Renesas, NXP, Texas Instruments, Analog Devices, and STMicroelectronics. These are useful starting points for research, but a company name is not a map of where a particular ordering code is fabricated, assembled, or tested.

Internal manufacturing and external foundries can both play a role. The right question is not simply whether a supplier owns fabs. Ask which qualified sites support your device, what change notifications apply, and whether alternate sites are already approved for your program. Avoid assuming an entire product family comes from a single factory without current supplier evidence.

Regional concentration deserves the same care. Additional mature-node capacity in China can change sourcing options, but a process capability does not automatically produce an interchangeable automotive component. Firmware support, quality systems, device qualification, system validation, and customer approval still matter.

Claims that a region will supply a majority of a market by a particular year—or that a hypothetical export restriction will halt all production within weeks—are scenarios unless backed by traceable data. For planning, map your own exposure: wafer fabrication, assembly, packaging, test, transport, and qualified alternatives. Those dependencies are more actionable than a broad geopolitical prediction.

06 / Design the alternative before you need it.

More capacity helps, but total wafer capacity and immediately usable supply are different measures. An extra production line does not instantly solve a shortage of a specific qualified part. Equally, qualification is not a reason to give up on second sources: it is a reason to start early.

  1. Map critical parts by function. Identify which missing devices can stop a build, including inexpensive interfaces and power-management parts.
  2. Define a real alternative. Compare electrical limits, packages, timing, software, diagnostics, and lifecycle support. Similar headlines on a datasheet are only the beginning.
  3. Validate at system level. Plan the required hardware, software, EMC, environmental, production-test, and safety activities around the actual change.
  4. Separate inventory from resilience. Buffer stock buys time. It does not replace an approved technical fallback or accurate demand planning.
  5. Keep evidence current. Track supplier change notifications, lifecycle notices, qualification reports, and the assumptions in your safety and manufacturing plans.

The lesson of the $2 chip paradox is not that mature technology is inherently fragile. It is that a component's value to a system can be far larger than its invoice price. Resilience begins when that gap becomes visible—while there is still time to engineer an alternative.
